产品型号
MODEL
|
ZBUAV4-30/50
|
ZBUAV6-30
|
|
产品结构
Product structure
|

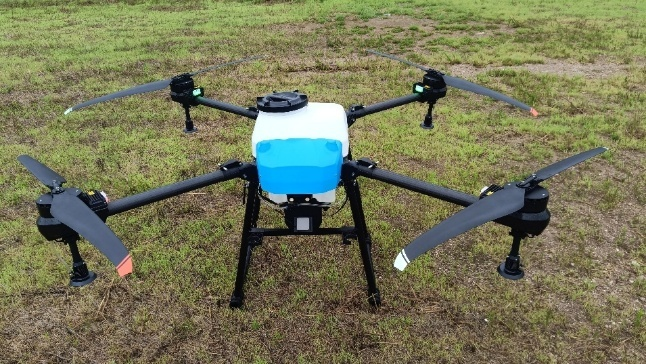

4 轴 4 桨
Quadcopter
|

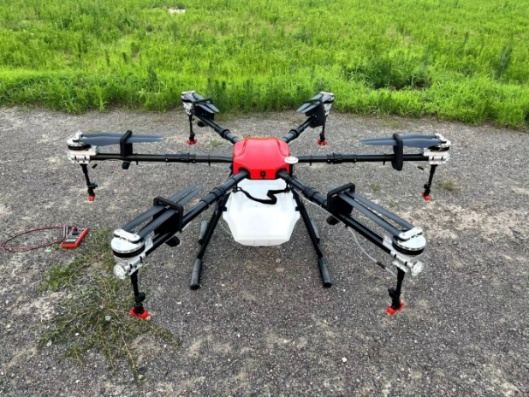

6 轴 6 桨
Hexacopter
|
|
药箱容积
Tank Capacity
|
30L / 50L
|
30L
|
|
产品轴距
wheelbase
|
1950mm / 2620 mm
|
1800mm
|
|
产品重量
Product Weight
|
22kg / 22.8kg
|
22kg
|
|
起飞重量
Take-off weight
|
68kg /110kg
|
66.8kg
|
|
空载飞行
No-load flight
|
15-20min
|
15-20min
|
|
展开尺寸
Unfolded size
|
30L:1300×1300×600mm(without propellers)
50L:1850*1750*1075mm(without propellers)
|
1800*1850*780mm (without propellers)
|
|
折叠尺寸
Folded dimension
|
Folded: 950×920×700mm
Folded: 972*772*1075mm
|
Folded size: 950*900*780mm
|
|
动力系统
Power system
|
X11+电机 X11plus motor
X13 电机 X13 moto
|
X9 电机
X9 motor
|
|
桨叶
Propeller
|
43 寸 / 56 寸
43 inches / 56 inches
|
34 寸
34 inches
|
|
每架次喷洒
Spraying per Flight
|
20-37.5 亩 20-37.5 acres
30-55 亩 30-55 acres
|
20-37.5 亩
20-37.5 acres
|
|
每架次飞行速度
Flight Speed per Mission
|
3-7m/s
|
3-7m/s
|
